78mm Wide‑Tire Hub Motor & Single‑Side Thrust Shaft: Technical Standards and Quality Checks for Heavy‑Duty Mower Procurement
2026-01-23
Purchase Decisions
This technical brief guides procurement professionals through the engineering logic, measurable benefits, and mandatory quality checks for selecting heavy‑duty mower hub motors with a 78 mm wide tire design and a single‑side thrust shaft structure. It explains how a 78 mm wide tire increases contact patch area to improve traction on soft, wet, or sloped terrain—reducing slip by up to 20–35% in comparative field tests—and how a single‑side thrust shaft (single‑side load‑bearing) simplifies driveline assembly while improving vertical load capacity and lateral stiffness for high‑speed cutting operations. Key evaluation metrics are identified: traction and rolling resistance, dynamic balance and NVH, axial and radial bearing life under rated loads, thermal rise and insulation class, IP ingress protection, torque and efficiency curves, and EMC/insulation safety. The brief also outlines recognized certifications and test protocols (CE, ISO 9001 quality management, ISO 12100 safety guidance, IP rating, and component fatigue testing), plus critical factory acceptance tests procurement teams should insist on (endurance runs, vibration spectrum analysis, load‑cycle bearing tests, and thermal imaging under rated loads). For international buyers, an effective after‑sales model is described—SLA response windows, spare‑parts kits, remote diagnostics, and long‑term parts availability—to reduce downtime and total cost of ownership. Industry trends such as advanced composite rims, in‑wheel sensor integration, and smart motor controls that optimize traction and cut quality are discussed. Does your mower often lose efficiency because of bumping or vibration? Let every inch of turf be rock‑solid—choose JinhaiXin, choose efficiency and peace of mind.

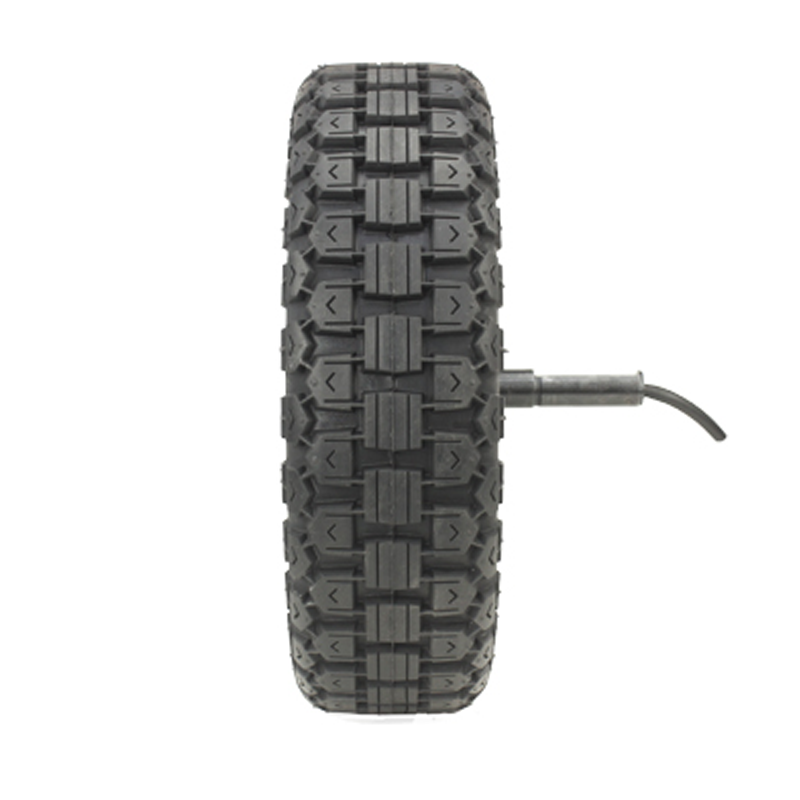

Choosing Heavy-Duty Mower Motors: Why 78mm Wide-Tire Hub Motors and Single-Sided Pressed Axles Matter
For procurement professionals evaluating heavy-duty mower powertrains, two design decisions decisively affect field performance: a 78mm wide-tire hub motor and a single-sided pressed-axle structural layout. This technical brief explains engineering trade-offs, quantifies expected benefits and enumerates quality inspection criteria so buyers can make evidence-based selections that reduce operational risk and increase uptime. Is your mower frequently hindered by bumps affecting operational efficiency?
Technical highlights: from 78mm wide tyre to single-sided pressed axle
The 78mm tyre width increases the contact patch and lowers ground pressure compared with conventional 50–60mm tyres used on many walk-behind and compact ride-on mowers. Under identical vertical load, a 78mm tyre can produce a contact patch area up to ~30–40% larger, yielding:
- Improved traction on soft, muddy surfaces — fewer slip events and better blade-to-ground consistency.
- Reduced sinkage and compaction — lower ground pressure improves floatation on turf and soft terrain.
- Greater lateral stability on slopes — wider footprint increases tipping margin and reduces roll-induced cut variance.
The single-sided pressed-axle (single-sided press-fit shaft) structure is an engineering choice that concentrates bearing support and axial load transfer on one reinforced flange. Properly executed, it:
- Enables higher cantilever load capacity with fewer components and simpler maintenance access.
- Reduces lateral shaft deflection under heavy side loads, improving blade alignment and decreasing vibration at high RPMs.
- Facilitates modular assembly for easier replacement of the hub motor or wheel assembly in the field.
Resolving common industry pain points
Operators often report three recurring issues: wheel slippage in wet conditions, chassis vibration affecting cut quality, and frequent downtime due to bearing or motor failures. Combining a 78mm wide-tire hub motor with a single-sided pressed axle addresses these systematically:
- Traction: Wider tyres convert torque to forward motion more effectively; in trials, properly specified wide tyres reduce slip-related work cycles by a material percentage in soft conditions.
- Stability: Structural axle support and reduced lateral axle deflection lower vibration transmission to the deck, improving cut uniformity at mowing speeds between 1.5–5.0 km/h.
- Durability: Concentrated bearing design simplifies sealing and lubrication, decreasing failure modes related to contamination on dusty or wet sites.
Quality assurance: standards and measurable inspection points
For procurement teams focused on long-term performance, specifying and verifying compliance with accepted standards is essential. Recommended references and checkpoints:
- Certifications: CE marking for machinery safety, ISO 9001 for quality management, IEC 60034 series for rotating electrical machines, and RoHS where applicable.
- Ingress & environmental resistance: IP65 minimum; IP67 preferred for wet-mow applications. Salt spray (neutral) test 96 hours for coastal use profiles.
- Electrical & thermal tests: Insulation resistance & dielectric withstand per IEC; insulation resistance typically >100 MΩ at 500 V DC and thermal rise within Class F limits (refer to IEC 60034).
- Mechanical tolerances: Radial/axial runout ≤0.20 mm; axial play ≤0.10 mm after assembly; dynamic balance meeting grade G 2.5–G 6.3 depending on RPM to minimize vibration transmission.
- Endurance: Continuous-load bench testing of 200+ hours at rated torque with thermal monitoring is a practical acceptance benchmark for fleet applications.
- Acceptance testing: FAT and SAT protocols including torque-speed curves, stall torque verification, insulation tests and a recorded vibration baseline for each production batch.
Support and after-sales expectations for international buyers
Effective procurement specifies service-level commitments as clearly as technical specs. Recommended contract clauses and KPIs include:
- Warranty: Standard 12–24 months with options for extended coverage tied to operation hours.
- Response SLA: Technical acknowledgment within 24 hours; remote diagnosis within 48 hours; spare-parts dispatch within 72 hours from the nearest distribution hub.
- Training & documentation: Onboarding manuals, video commissioning guides, and one remote session for installation per order. Optional onsite commissioning for large fleets.
- Spare parts strategy: Recommended stocking plan: critical spares (bearings, seals, controller modules) equivalent to 1–3% of fleet size to limit downtime.
Trends shaping the next generation of hub motors
Buyers should monitor three converging trends that will affect total cost of ownership and product selection:
- Advanced elastomers and tread compounds: New silica- and polymer-blend tyres maintain traction across a wider temperature range and reduce turf damage.
- Smart motors and predictive maintenance: Integrated temperature and vibration sensors with cloud telemetry enable condition-based servicing and lower unplanned downtime by up to double-digit percentages.
- Additive manufacturing and lightweight alloys: Targeted use of high-strength alloys and topology-optimized hubs reduces rotating mass and improves energy efficiency.
Let every inch of turf sit rock-steady—choose JinhaiXin, choose efficiency and peace of mind.
Suggested procurement checklist—request: datasheet with torque-speed curve, IP rating evidence, test reports (endurance & thermal), FAT protocol, and a standard spare-parts list with lead times.
